尼得科变频器 NIDEC Unidrive M700工程型变频器
产品简介
Control Techniques Unidrive M700系列高性能AC /伺服驱动器通过增强的单轴控制和多轴网络同步提供更大的机器生产量。
板载实时以太网（IEEE 1588 V2），运动控制器和用于位置捕获的高速I / O使机器制造商能够创建更复杂，更灵活的机器。板载以太网支持EtherNet / IP、Profinet RT、Modbus TCP和以太网实时运动控制（RTMoE），以实现网络灵活性。
为了满足任何应用程序的需求，Unidrive M700系列提供三种型号：
Unidrive M700：板载以太网和单个STO输入
Unidrive M701：板载RS485，支持Unidrive SP升级，单STO输入
Unidrive M702：板载以太网，双STO输入

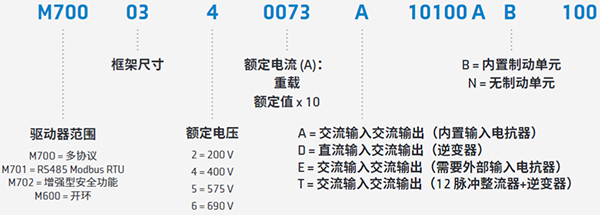

命名规则
产品型号
| M700型号 | M701型号 | M702型号 | 功率 |
| M700-03200050A | M701-03200050A | M702-03200050A | 1.1KW |
| M700-03200066A | M701-03200066A | M702-03200066A | 1.5KW |
| M700-03200080A | M701-03200080A | M702-03200080A | 2.2KW |
| M700-03200106A | M701-03200106A | M702-03200106A | 3KW |
| M700-04200137A | M701-04200137A | M702-04200137A | 4KW |
| M700-04200185A | M701-04200185A | M702-04200185A | 5.5KW |
| M700-05200250A | M701-05200250A | M702-05200250A | 7.5KW |
| M700-06200330A | M701-06200330A | M702-06200330A | 11KW |
| M700-06200440A | M701-06200440A | M702-06200440A | 15KW |
| M700-07200610A | M701-07200610A | M702-07200610A | 18.5KW |
| M700-07200750A | M701-07200750A | M702-07200750A | 22KW |
| M700-07200830A | M701-07200830A | M702-07200830A | 30KW |
| M700-08201160A | M701-08201160A | M702-08201160A | 37KW |
| M700-08201320A | M701-08201320A | M702-08201320A | 45KW |
| M700-09201760A | M701-09201760A | M702-09201760A | 55KW |
| M700-09202190A | M701-09202190A | M702-09202190A | 75KW |
| M700-09201760E | M701-09201760E | M702-09201760E | 55KW |
| M700-09202190E | M701-09202190E | M702-09202190E | 75KW |
| M700-10202830E | M701-10202830E | M702-10202830E | 90KW |
| M700-10203000E | M701-10203000E | M702-10203000E | 110KW |
| M700-03400025A | M701-03400025A | M702-03400025A | 1.1KW |
| M700-03400031A | M701-03400031A | M702-03400031A | 1.5KW |
| M700-03400045A | M701-03400045A | M702-03400045A | 2.2KW |
| M700-03400062A | M701-03400062A | M702-03400062A | 3KW |
| M700-03400078A | M701-03400078A | M702-03400078A | 4KW |
| M700-03400100A | M701-03400100A | M702-03400100A | 5.5KW |
| M700-04400150A | M701-04400150A | M702-04400150A | 7.5KW |
| M700-04400172A | M701-04400172A | M702-04400172A | 11KW |
| M700-05400270A | M701-05400270A | M702-05400270A | 15KW |
| M700-05400300A | M701-05400300A | M702-05400300A | 15KW |
| M700-06400350A | M701-06400350A | M702-06400350A | 18.5KW |
| M700-06400420A | M701-06400420A | M702-06400420A | 22KW |
| M700-06400470A | M701-06400470A | M702-06400470A | 30KW |
| M700-07400660A | M701-07400660A | M702-07400660A | 37KW |
| M700-07400770A | M701-07400770A | M702-07400770A | 45KW |
| M700-07401000A | M701-07401000A | M702-07401000A | 55KW |
| M700-08401340A | M701-08401340A | M702-08401340A | 75KW |
| M700-08401570A | M701-08401570A | M702-08401570A | 90KW |
| M700-09402000A | M701-09402000A | M702-09402000A | 110KW |
| M700-09402240A | M701-09402240A | M702-09402240A | 132KW |
| M700-09402000E | M701-09402000E | M702-09402000E | 110KW |
| M700-09402240E | M701-09402240E | M702-09402240E | 132KW |
| M700-10402700E | M701-10402700E | M702-10402700E | 160KW |
| M700-10403200E | M701-10403200E | M702-10403200E | 200KW |
| M700-11403770E | M701-11403770E | M702-11403770E | 225KW |
| M700-11404170E | M701-11404170E | M702-11404170E | 250KW |
| M700-11404640E | M701-11404640E | M702-11404640E | 280KW |
| M700-12404800T | M701-12404800T | M702-12404800T | 315KW |
| M700-12405660T | M701-12405660T | M702-12405660T | 355KW |
| M700-12406600T | M701-12406600T | M702-12406600T | 400KW |
| M700-12407200T | M701-12407200T | M702-12407200T | 500KW |
| M700-05500030A | M701-05500030A | M702-05500030A | 2.2KW |
| M700-05500040A | M701-05500040A | M702-05500040A | 4KW |
| M700-05500069A | M701-05500069A | M702-05500069A | 5.5KW |
| M700-06500100A | M701-06500100A | M702-06500100A | 7.5KW |
| M700-06500150A | M701-06500150A | M702-06500150A | 11KW |
| M700-06500190A | M701-06500190A | M702-06500190A | 15KW |
| M700-06500230A | M701-06500230A | M702-06500230A | 18.5KW |
| M700-06500290A | M701-06500290A | M702-06500290A | 22KW |
| M700-06500350A | M701-06500350A | M702-06500350A | 30KW |
| M700-07500440A | M701-07500440A | M702-07500440A | 45KW |
| M700-07500550A | M701-07500550A | M702-07500550A | 55KW |
| M700-08500630A | M701-08500630A | M702-08500630A | 75KW |
| M700-08500860A | M701-08500860A | M702-08500860A | 90KW |
| M700-09501040A | M701-09501040A | M702-09501040A | 110KW |
| M700-09501310A | M701-09501310A | M702-09501310A | 110KW |
| M700-09501040E | M701-09501040E | M702-09501040E | 110KW |
| M700-09501310E | M701-09501310E | M702-09501310E | 110KW |
| M700-10501520E | M701-10501520E | M702-10501520E | 130KW |
| M700-10501900E | M701-10501900E | M702-10501900E | 150KW |
| M700-11502000E | M701-11502000E | M702-11502000E | 185KW |
| M700-11502540E | M701-11502540E | M702-11502540E | 225KW |
| M700-11502850E | M701-11502850E | M702-11502850E | 250KW |
| M700-07600190A | M701-07600190A | M702-07600190A | 18.5KW |
| M700-07600240A | M701-07600240A | M702-07600240A | 22KW |
| M700-07600290A | M701-07600290A | M702-07600290A | 30KW |
| M700-07600380A | M701-07600380A | M702-07600380A | 37KW |
| M700-07600440A | M701-07600440A | M702-07600440A | 45KW |
| M700-07600540A | M701-07600540A | M702-07600540A | 75KW |
| M700-08600630A | M701-08600630A | M702-08600630A | 55KW |
| M700-08600860A | M701-08600860A | M702-08600860A | 90KW |
| M700-09601040A | M701-09601040A | M702-09601040A | 110KW |
| M700-09601310A | M701-09601310A | M702-09601310A | 132KW |
| M700-09601040E | M701-09601040E | M702-09601040E | 110KW |
| M700-09601310E | M701-09601310E | M702-09601310E | 132KW |
| M700-10601500E | M701-10601500E | M702-10601500E | 160KW |
| M700-10601780E | M701-10601780E | M702-10601780E | 185KW |
| M700-11602100E | M701-11602100E | M702-11602100E | 200KW |
| M700-11602380E | M701-11602380E | M702-11602380E | 250KW |
